FBS4 Authentication Simulator
Mercedes-Benz EDC17CP57 TC1793 — Real data extracted from D-Flash
Vehicle

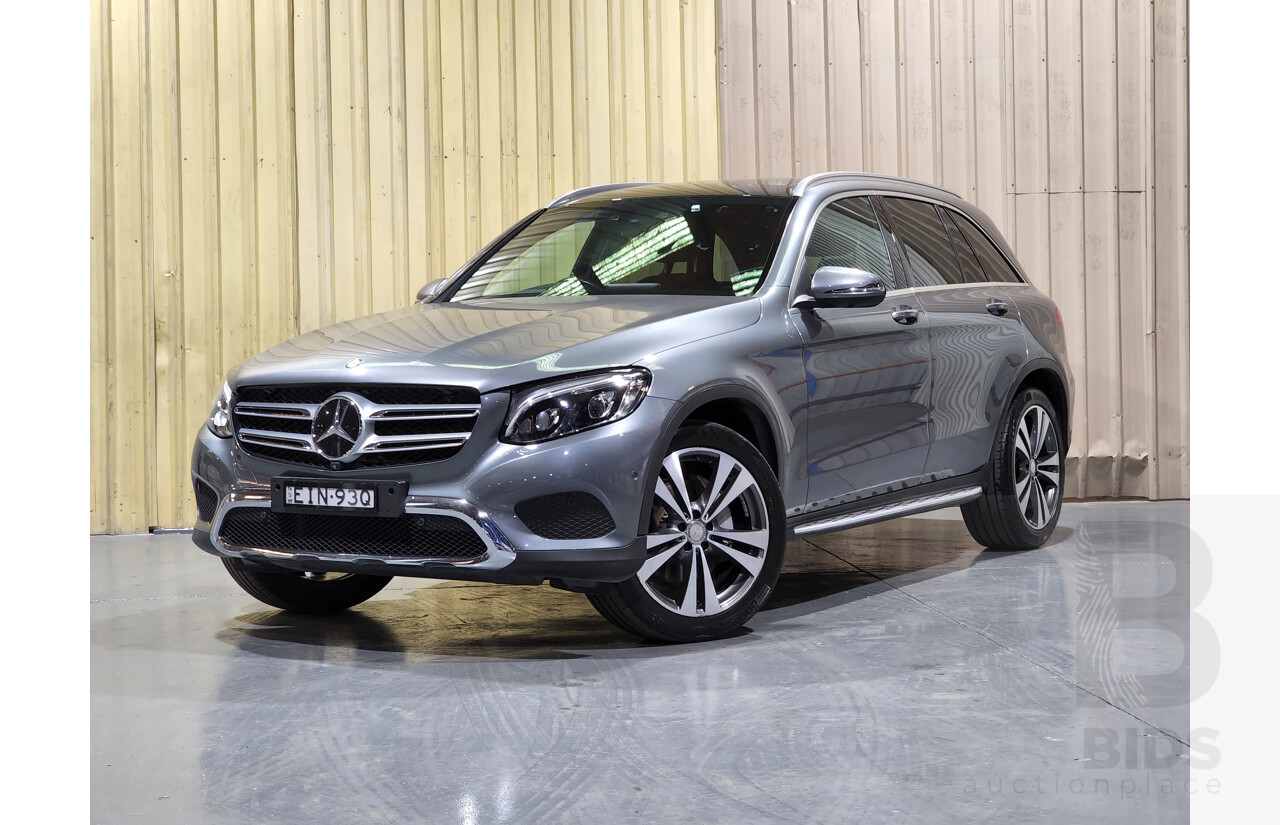

Mercedes-Benz GLC (W253)
VIN
WDC2539091F089924
Engine
OM651 2.1L CDI (4-cyl diesel)
ECU
Bosch EDC17CP57 / TC1793
HW Part No
A 651 901 40 01
SW Part No
A 651 904 04 01
ECU Serial
7000029156612010130123010
FT Number
FT1037524978
Programming Dates
13-03-2016 / 15-03-2016
Bosch S/N
0009059603290033
Start Counter
5109 ignition cycles
Crash Status
ACTIVE (C16E + 0C2E flagged)
🔑 EZS (Elektronischer Zündschalter)
Shared Secret (AES-128 Key)
A24D819C063FEC17910B225F4719B9AF
Current Track
1
Nonce (generated)
—
Expected Response
—
Received Response
—
Verdict
—
CAN BUS
⚙️ ECU (EDC17CP57)
Shared Secret (AES-128 Key)
A24D819C063FEC17910B225F4719B9AF
Track Rolling State
9446760E2D0AEB9AF05F0C3415F46EEF
Received Challenge
—
Computing AES(Key, Nonce)
—
Response Sent
—
Start Authorization
—
800ms
